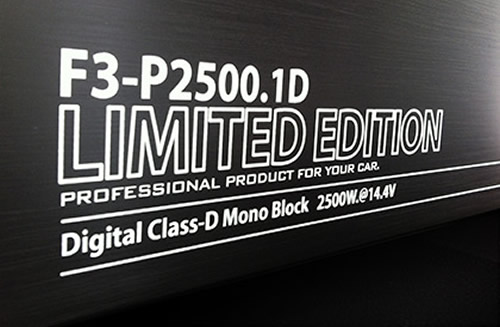

• Digital Class-D Mono Block Amplifier

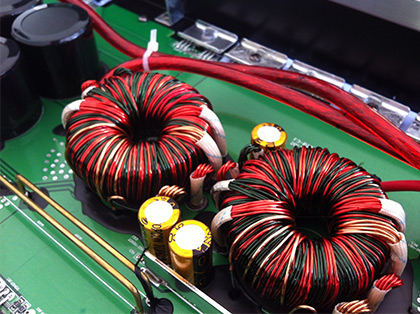

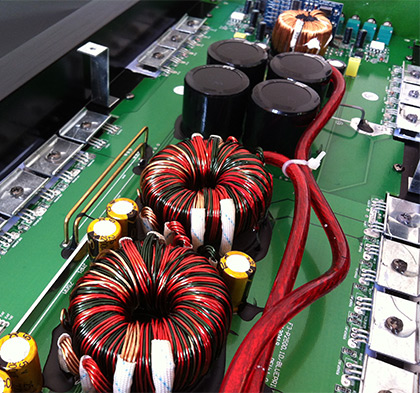

• MOS-FET PWM Power Supply
• Stable into 1 Ohm Load Workable
• 24dB Octave Crossover Slope
• Variable Low Pass Filter
• Variable Subsonic Filter
• Variable Bass Boost
• Variable Phase Shift
• Multi-Way Protection Circuitry
(Thermal/Over Current/Speaker
Short/Speaker DC Protection)
SPECIFICATIONS:
• RMS@1 Ohm 2500W
• RMS@2 Ohm 1100W
• RMS@4 Ohm 600W
• Frequency Response: 10Hz-350Hz
• Input Sensitivity:200mV~6V
• S/N Ratio :> 90dB
• Low Pass Filter: 30Hz-300Hz
• Subsonic Filter: 10Hz-60Hz
• Bass Boost : 0~18dB
• THD < 1%

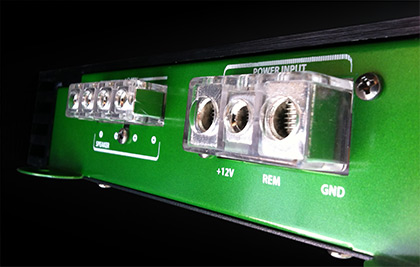

• Operating Voltage:DC10V~18V Power Input

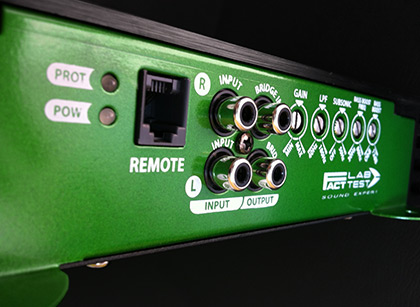

• Wired Remote Controller
• Dimensions: 430mm*283mm*50mm (L*W*H)
