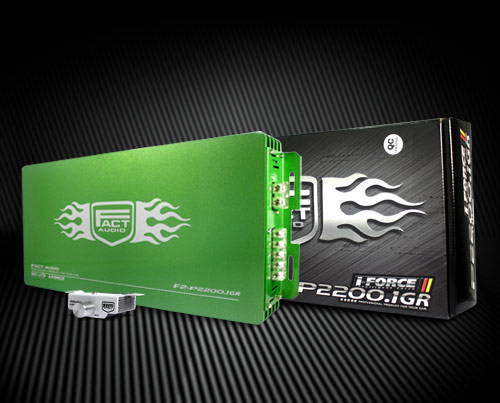

   F2-P2200.1GR
    POWER AMP
fact audio

SPECIFICATION:

• RMS @ 4 Ohm (<1% DISTORTION) 750W
• RMS @ 2 Ohm (<1% DISTORTION) 1100W
• RMS @ 1 Ohm (<1% DISTORTION) 1800W

• Input Level 0.2 - 5V
• Frequency Response 8-180Hz
• LPF 40-180Hz
• SUBSONIC Filter 5 - 50 Hz
• Bass Boost Frequency 30 - 80 Hz
• Bass Boost Level 0 - 12 dB
• THD at 4 Ohm load 30% Rated Power < 0.2%
• Signal To Noise Ratio >70dB
• Best Efficiency >85%
• Minimum Load 1 Ohm
• Optional Remote Yes
• Bridgeable with Same Amplifier Yes
• Overload Protect System Pass
• Short Circuit Test (max. power) 80 íC/176 íF
• Components & PCB SMT&Double Side Board
• Transparent Isolation Connector Yes
