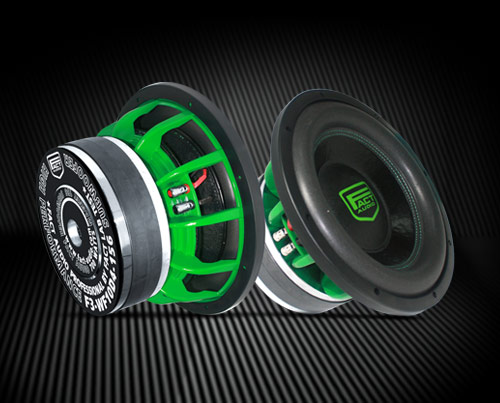

    SUBWOOFER

SPECIFICATION:

Features:
Black Anodized Pure Steel Metal Frame for extra strength
Hybrid Kevlar bonded spruce pulp cone for deep and accurate sound
Dual Four-Layered 2.5 " Kapton Voice Coils for extra high power handling
Gigantic Dual Stacked Magnet structure for extreme power handling
Ultra wide Rubber santoprene surround foam design for improved sensitivity
Screw plated lock-binding terminals for maximum connectivity
Progressve Spider for optimum performance


Specifications:
Maximum Power Handling: 1000 Watts
Continuous Power Handling: 500 Watts
Frequency Response: 35-300 Hz
Sensitivity: 88 dB at 1W/1M
Impedance: 4 Ohms
Recommended Amplifier Rating: 200-500 Watts RMS
Recommended Enclosure: Vented 1.2 Cu.ft.
Close box 0.75 Cu.ft
Vented 1.25 cu.ft. Port 4 Sq.in Length 8.8 ince
Vented 1.25 cu.ft. Port 18.75 Sq.in Length 13 inch
